2021 Harley-Davidson Cruiser XL 1200NS Iron 1200

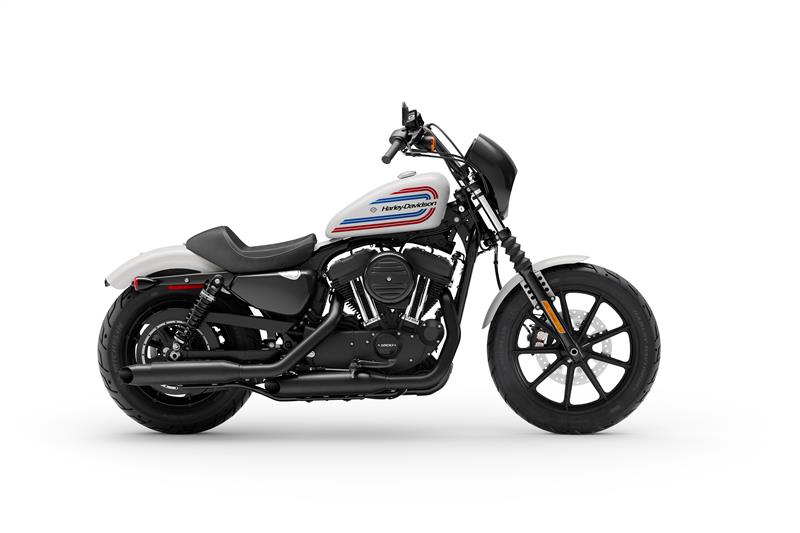

2021 Harley-Davidson XL 1200NS Iron 1200
Blacked-out chopper profile with the power to go beyond the city limits.
- Riders looking for an edgy factory-custom chopper
- Bold throwback styling updated with dark, modern finishes
- 1200cc Air-Cooled Evolution® V-Twin and Mini-Ape bars
Engine
- Displacement:53.9 cu in (883 cc)
- Compression Ratio:9:01
- Engine:Air-cooled, Evolution®
- Bore:3 in.
- Stroke:3.811 in.
- Fuel system:Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:Black exhaust headers and black mufflers
Dimensions
- Fuel Capacity:3.3 gal.
- Length:86 in.
- Wheelbase:59.6 in.
- Ground Clearance:5.5 in.
- Tires, Front Model:100/90B19 57H
- Tires, Rear Model:150/80B16 77H
- Rake:30
- Seat Height, Laden:25.7 in.
- Trail:4.6 in.
- Oil Capacity (w/ Filter):2.8 qt.
- Weight, as shipped:545 lb.
- Weight, in running order:564 lb.
Other
- MfrModelID:XL 1200NS
- Family Name:Cruiser
- Manufacturer Type:Cruiser
- :Optional
- Primary Color:BilliardRed
- Engine Torque Testing Method:J1349
- Engine Torque:53.8 ft-lb
- Engine Torque (RPM):3750
- Lean Angle, Right (Deg.):27
- Lean Angle, Left (Deg.):28
- Fuel Economy Testing Method:Estimated City/Hwy
- Fuel Economy:51 mpg
- Wheels, Front Type:Black 9 Spoke with Machined Highlights
- Wheels, Rear Type:Black 9 Spoke with Machined Highlights
- Brakes, Caliper Type:Dual-piston front, Dual-piston rear
- Lights (as per country regulation), indicator lamps:High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (if equipped), ABS (if equipped)
- Gauges:Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
- Gear Ratios (Overall) 1st:10.41
- Gear Ratios (Overall) 2nd:7.436
- Gear Ratios (Overall) 3rd:5.531
- Gear Ratios (Overall) 5th:4.584
- Gear Ratios (Overall) 6th:3.931
- Primary Drive:Chain, 34/57 ratio
