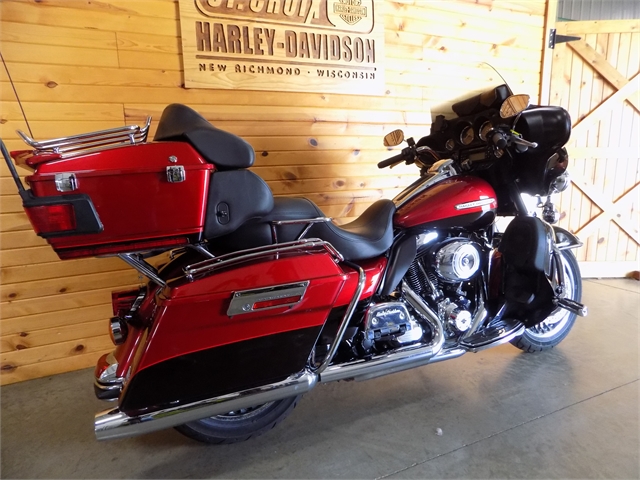

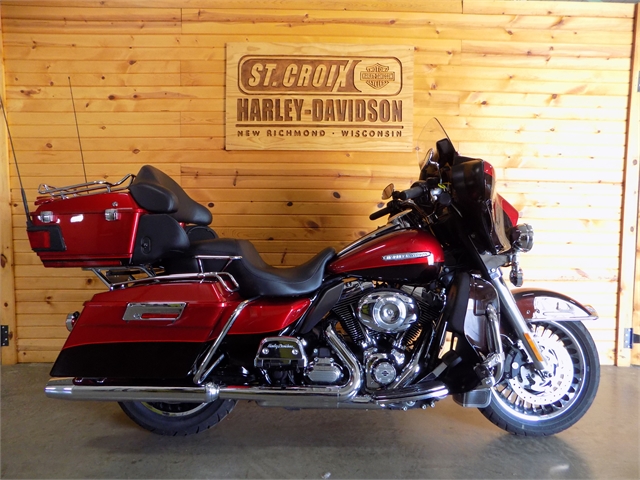

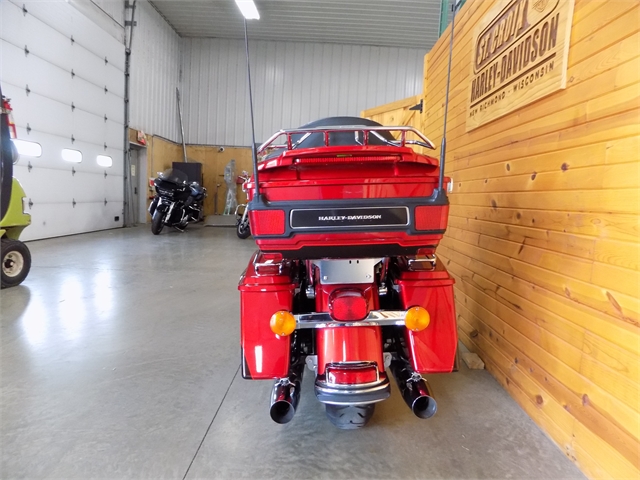

2012 Harley-Davidson Electra Glide Ultra Limited

Stock #610147
Your Price: $13,995
Check Availability Hi, my name is and I'm interested in this 2012 Harley-Davidson Electra Glide Ultra Limited . I'm in the area and you can reach me at or on my phone at .




THIS EMBER RED SUNGLO/MERLOT LIMITED COMES EQUIPPED WITH THE TWIN CAM 103" AND A SMOOTH SHIFTING 6 SPEED TRANSMISSION. TOUR THE COUNTRY SIDE IN COMFORT ON THIS BIKE. THERE IS ALOT OF ROOM FOR YOU TO CUSTOMIZE THIS BEAUTY AND MAKE IT YOURS. STOP ON IN TODAY TO TAKE YOUR NEXT NEW BIKE HOME TODAY!!!

  • Status:
    Pre-Owned
  • Vehicle:
    2012 Harley-Davidson Electra Glide Ultra Limited
  • VIN:
    1HD1KEM12CB610147
  • Model Number:
    FLHTK
  • Mileage:
    10,000 miles
  • Color:
    Two-Tone Ember Red Sunglow / Merlot
  • Stock Number:
    610147
  • Location:
    St. Croix Harley-Davidson
  • Warranty:
    As Is

AUDIO & COMMUNICATION

  • Brand Name:
    Harman/Kardon
  • Number Of Discs:
    1
  • Number Of Speakers:
    4

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Diameter (in):
    11.5
  • Front Brake Diameter (mm):
    292.1
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    11.5
  • Rear Brake Diameter (mm):
    292.1
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Adjustable:
    Yes
  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)
  • Heated Hand Grip Location:
    Driver

ENGINE

  • Bore (in):
    3.88
  • Bore (mm):
    98.5
  • CAN Liters Per Kilometer (Combined):
    5.6
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.6
  • Cooling:
    Air
  • Cylinders:
    2
  • Displacement (cc):
    1687.9
  • Displacement (ci):
    103
  • Engine Brand Name:
    Twin Cam 103™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.38
  • Stroke (mm):
    111.3
  • Torque (Ft Lbs):
    100
  • Torque (Nm):
    135.6
  • Torque RPM:
    3250
  • US Miles Per Gallon (Combined):
    42
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Chassis Protectors:
    Yes
  • Engine Case Guard:
    Yes
  • Floor Board Location:
    Driver and Passenger
  • Frame:
    Steel
  • Pocket:
    Yes
  • Saddle Bag Guard:
    Yes
  • Side Cover:
    Yes
  • Stand Type:
    Kick
  • Tank Divider Material:
    Leather

GLASS

  • Folding:
    Yes
  • Height:
    High
  • Windshield Brand:
    Lexan®

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Backrest Location:
    Passenger
  • Backrest Type:
    Fixed
  • Lumbar Adjustment:
    Yes
  • Number Of Seats:
    2
  • Seat Height (in):
    27.3
  • Seat Height (mm):
    693.4
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Bag Liner Material:
    Vinyl
  • Location:
    Left and Right Side
  • Number Of Side Cases:
    2
  • Rear Rack Storage Material:
    Hard Vinyl
  • Rear Rack Storage Trim:
    Plain
  • Side Case Material:
    Vinyl

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    388.7
  • Dry Weight (lbs):
    857
  • Engine Displacement to Weight (cc):
    1.97
  • Fuel Capacity (gal):
    6
  • Fuel Capacity (l):
    22.7
  • Ground Clearance (in):
    5.1
  • Ground Clearance (mm):
    129.5
  • Length (ft):
    8.22
  • Length (ft/ft):
    8
  • Length (ft/in):
    2.6
  • Length (in):
    98.6
  • Length (mm):
    2504.4
  • Wet Weight (kg):
    408.7
  • Wet Weight (lbs):
    901
  • Wheelbase (in):
    63.5
  • Wheelbase (mm):
    1612.9

TRANSMISSION

  • Gear Ratio (1):
    9.59
  • Gear Ratio (2):
    6.65
  • Gear Ratio (3):
    4.94
  • Gear Ratio (4):
    4
  • Gear Ratio (5):
    3.41
  • Gear Ratio (6):
    2.86
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Chromed:
    Yes
  • Front Tire (Full Spec):
    Dunlop® 130/80 R17 65H
  • Front Tire Aspect Ratio:
    80
  • Front Tire Speed Rating:
    65H
  • Front Tire Width:
    130
  • Front Wheel Diameter:
    17
  • Rear Tire (Full Spec):
    Dunlop® 180/65 R16 81H
  • Rear Tire Aspect Ratio:
    65
  • Rear Tire Speed Rating:
    81H
  • Rear Tire Width:
    180
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
